Outdoor Warming Drawer, pdp
WD1-30-SSOD

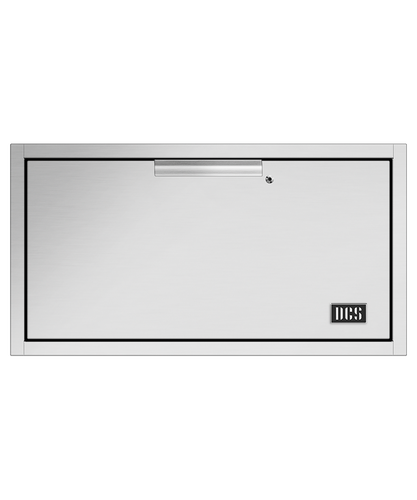

Outdoor Warming Drawer

5 out of 5 Customer Rating Reviews
The DCS Outdoor Warming Drawer means dinner is ready when you are and a removable stainless steel shelf means there is enough space for up to 6 standard-sized dinner plates.
Finish
Stainless Steel
Outdoor Warming Drawer
Height 16 "
Width 30 "
Depth 2618 "

Features & Benefits

Control

The thermostatically controlled temperature ranges from 140°-230°F.

Capacity

A removable stainless steel shelf means there is enough space for up to six standard-sized dinner plates.

Quality

Constructed from 304-grade stainless steel with superior weld and finish, DCS warming drawers are built to last.

Finish

The neutral stainless steel finish, refined handle profile and consistent detailing ensure DCS built-in products install seamlessly into your cabinetry.

Specifications

Height
16 "
Width
30 "
Depth
2618 "

Capacity

Capacity Attributes Value
Deep drawer
Number of dinner plates accommodated 6

Cleaning

Cleaning Attributes Value
Removable stainless steel shelf/tray

Controls

Controls Attributes Value
Moist and crisp setting
Thermostatically controlled temperature

Finish

Finish Attributes Value
Built-in installation
Material 304 grade stainless steel
Weather resistant

Installation Dimensions

Installation Dimensions Attributes Value
Cutout depth (flush) 26 316"
Cutout depth (proud) 24 316"
Cutout height (flush) 16 38"
Cutout height (proud) 14 716"
Cutout width (flush) 30 316"
Cutout width (proud) 28 38"

Power requirements

Power requirements Attributes Value
Power input 500W
Rated current 15A
Supply frequency 60Hz
Supply voltage 120V
Wire 3

Product dimensions

Product dimensions Attributes Value
Depth 26 18"
Height 16"
Width 30"

Safety and compliance

Safety and compliance Attributes Value
UL approved

Shipping Information

Shipping Information Attributes Value
Packaged weight 93lbs

Warranty

Warranty Attributes Value
Parts and labor 2 years
Stainless steel assemblies (Material only) 5 years

Resources

Please note: Videos are not for downloading purposes

CAD Downloads

General

Installation
