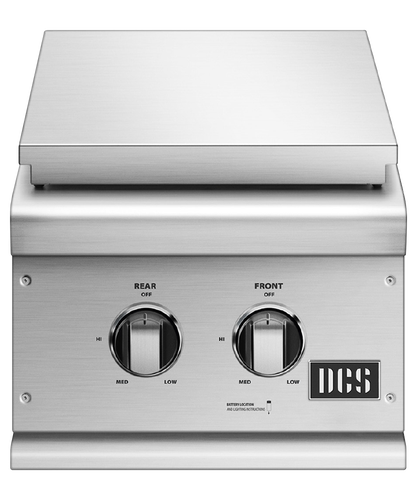

BGC132-BI-L
14" Series 7
Double Side Burner
LPG
- Series 7
The dedicated DCS Side Burners allow separate cooking activities to take place alongside the grill. Constructed of heavy stainless steel, DCS side burners are rated at a powerful 17,000 BTUs, and are available in single or double burner configurations. Available in Natural and LP Gas.
Stainless Steel, LPG
- Finish
- Stainless Steel
- Fuel Type
- LPG
starting from
$1,249.00
14" Series 7
Double Side Burner
LPG
LPG gas; requires external gas bottles. This model is also available in Natural Gas (model BGC132-BI-N)
Height
10 58 "
Width
14 916 "
Depth
26 58 "
Specifications
- Height
- 10 58 "
- Width
- 14 916 "
- Depth
- 26 58 "
Burners
| Burners Attributes | Value |
|---|---|
| Number of side burners | 2 |
Features
| Features Attributes | Value |
|---|---|
| Ignition system | Spark |
| Metal dials |
Finish
| Finish Attributes | Value |
|---|---|
| Material | 304 grade stainless steel |
| Weather resistant |
Gas Requirements
| Gas Requirements Attributes | Value |
|---|---|
| 1/2" NPT male with 3/8" in flare adapter | |
| Gas type | LPG |
| LP hose with regulator and Type 1 connector | |
| Operational pressure | 11" W.C. |
| Supply Pressure | 12" to 14" W.C. |
Installation Dimensions
| Installation Dimensions Attributes | Value |
|---|---|
| Cutout depth (proud) | 22 34" |
| Cutout height (proud) | 10 18" |
| Cutout width (proud) | 12 18" |
Performance
| Performance Attributes | Value |
|---|---|
| Side burner power | 17000 BTU |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Grill power supply | 1.5V battery for ignition |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 26 58" |
| Height | 10 58" |
| Packaged weight | 32lbs |
| Width | 14 916" |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labor | 2 years |
